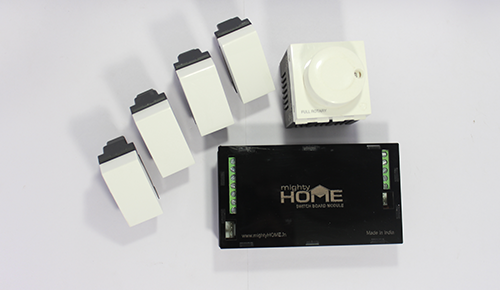

mightyhome switchboard module *Original product image, *Switches & Regulator are only for representation purposes.

Switchboard Control Module

Control your lights ON/OFF, fan ON/OFF & regulation easily using the mightyHOME Switchboard Control Module. The module fits snugly behind your switchboard between switches and loads. Control using mightyHOME smart phone App as well as operate from physical switches and regulators.

Switchboard Control Module planned by Architects for covering major switches and fan points (Fan’s switch + Regulator) requirements for all spaces; small, big or grand.


Product Code: SBRX.Y - A, SBTX.Y - A
*X = No. of Switches Y = No. of Fans (Max. 2 Fans)

Available Switchboard Controllers:

For Switchboards having Switches (Load Points) only
2 Switch Control
3 Switch Control
4 Switch Control
5 Switch Control
6 Switch Control
7 Switch Control
8 Switch Control
For Switchboards having Switches (Load Points) and 1 Fan Point Only.
2 Switch Control + 1 Fan Point Control
3 Switch Control + 1 Fan Point Control
4 Switch Control + 1 Fan Point Control
5 Switch Control + 1 Fan Point Control
6 Switch Control + 1 Fan Point Control
7 Switch Control + 1 Fan Point Control
8 Switch Control + 1 Fan Point Control
For Switchboards having Switches (Load Points) and 2 Fan Points (For e.g: Living Rooms)
2 Switch Control + 2 Fan Point Control
3 Switch Control + 2 Fan Point Control
4 Switch Control + 2 Fan Point Control
5 Switch Control + 2 Fan Point Control
6 Switch Control + 2 Fan Point Control

Introduction Video

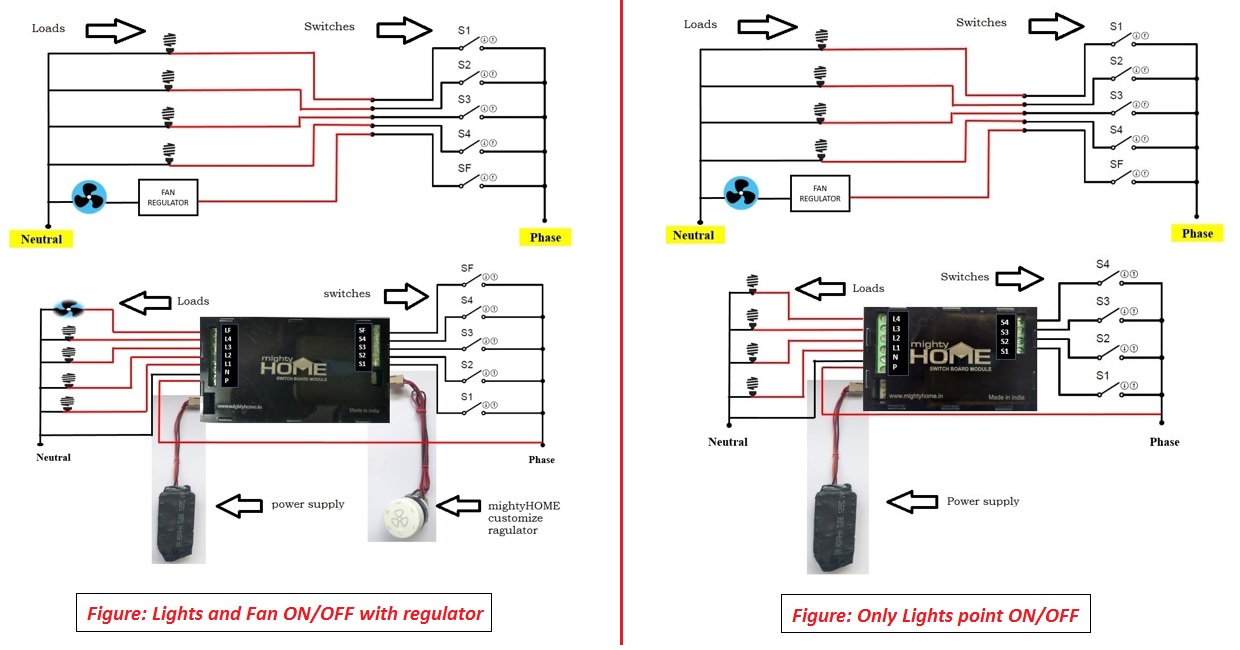

View Installation Image

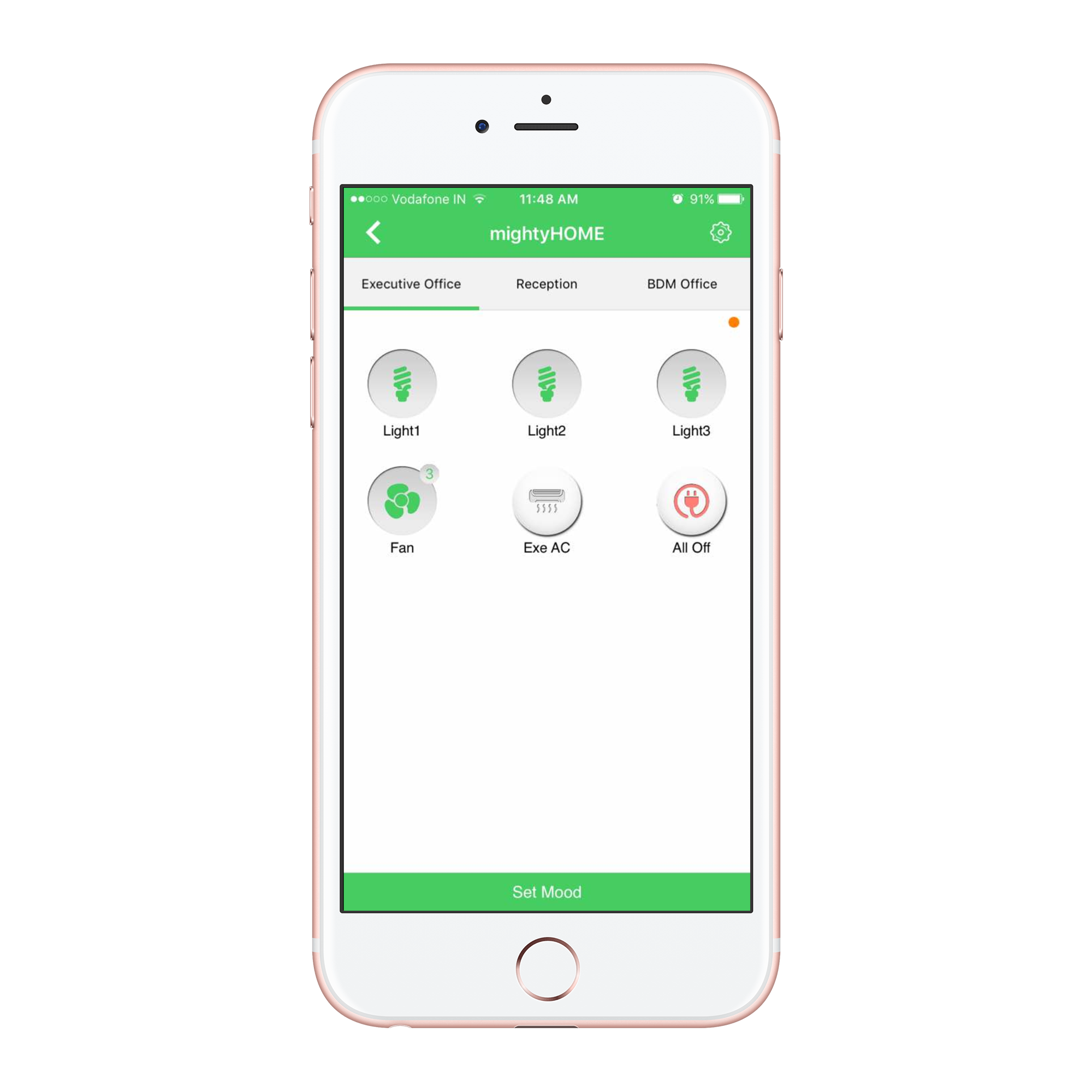

mightyhome switchboard app Switchboard App

Technical Specifications


Wattage of load per switch 1200W
Communication Protocol Wireless 802.11 b/g/n protocol
Operating Frequency 2.4 GHz
Operating Temperature -10℃ ~ +125℃
Operating Power +20 dBm
Control Processor Frequency 16 MHz
Communication Processor Frequency 50 MHz

Benefits


Retrofit Fits in existing electrical plan
Humming - free Technology High order noise filters to eliminate humming in automation of fans
Quick Response Individual processors for communication and control, thus no downside of delay in operations
Dynamic feedback Smooth & Quick response of switches or regulators and App operation
Reliable Eco - process and quality grade reliability factors ensure increased life span of appliances
Designed for all Suitable for all generations - operate from App or use physical switch boards.

Installation facts


Flexibility of Product Availability of major switchboard requirements, i.e 2+0, 3+0, … , 8+0, 2+1, 3+1, …, 8+1 & 2+2, 3+2, …, 6+2 - lights and fans modules. We also make customized switchboard modules for more than 6 switches for building(s) and villa(s) automation.
Buffer Installation The module fits between switches and loads.
Remote configuration Upon quick and easy module installation, your module & App is ready-to-use as configuration is already completed by our technicians over cloud prior to installation.
